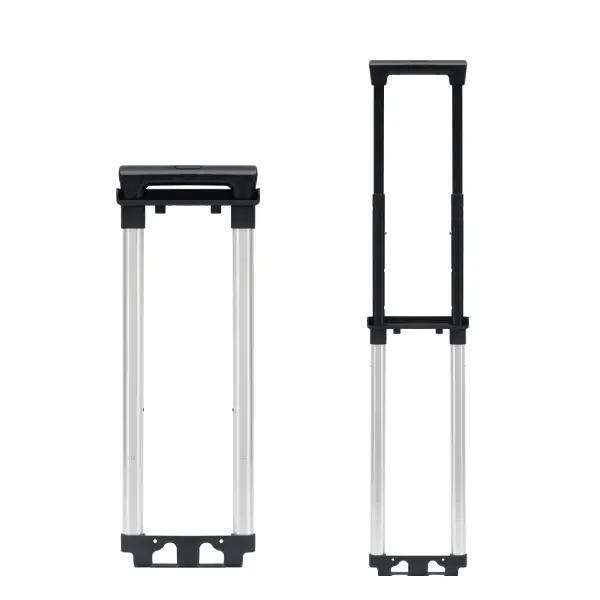

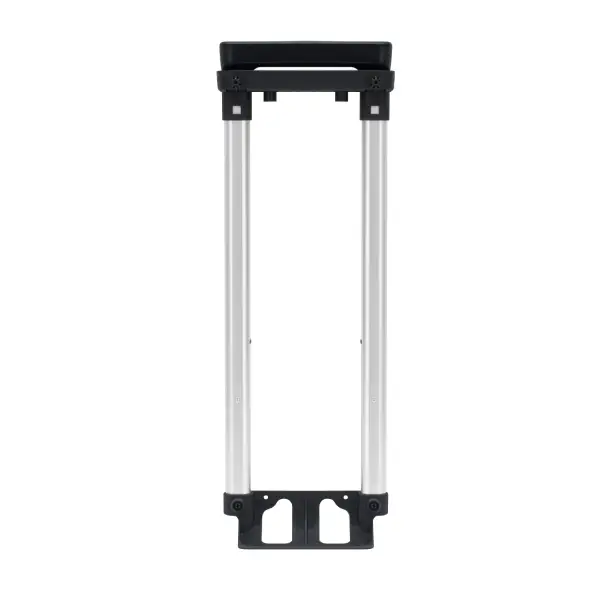

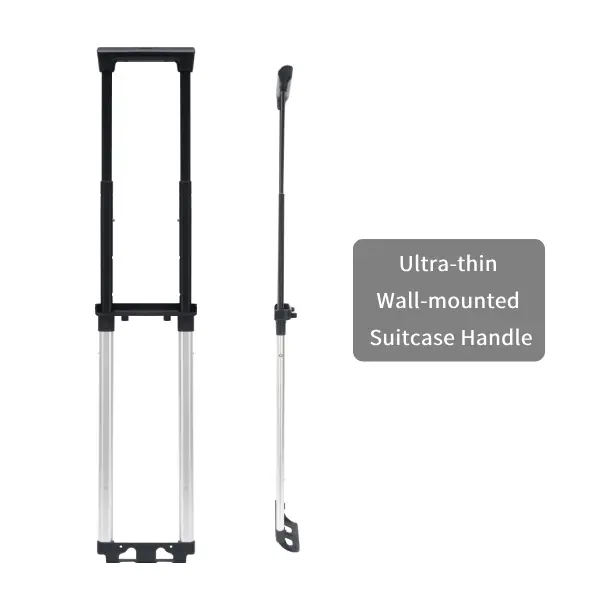

JX8228 is an ultra-thin wall-mounted luggage pull handle launched by Jingxiang in 2025. It was independently designed, molded, and prototyped by the engineers of our factory.
JX8228 Luggage Pull Handle Advantages:

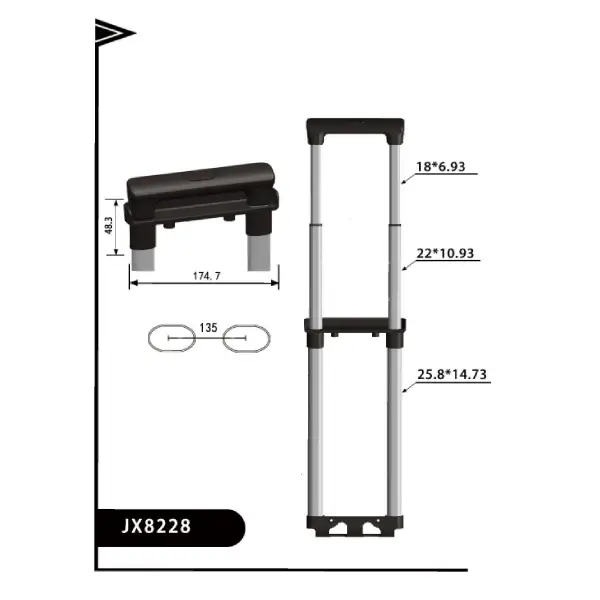

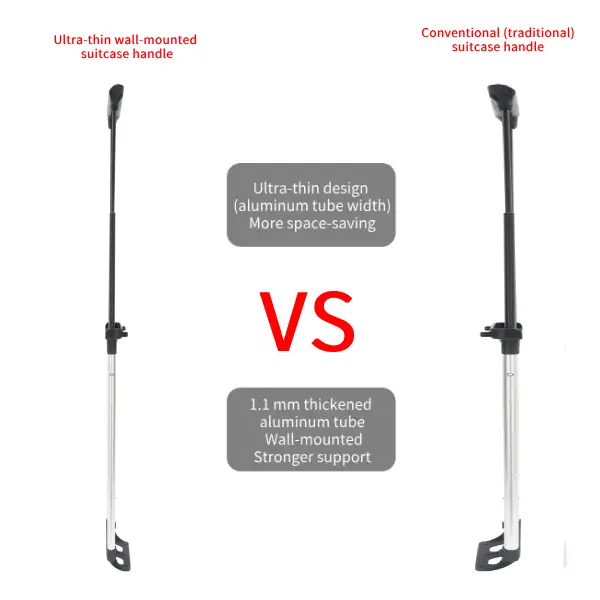

1. Ultra-thin Design (Aluminum Tube Width), occupies less space. The JX8228 has a narrower aluminum tube width compared to conventional luggage pull handles, appearing flatter. The outer aluminum tube has a maximum width of only 14.73 mm, while the inner tube is 6.93 mm. When configured with a suitcase, it increases the usable space of the suitcase compared to those of the same size, giving the suitcase brand a competitive edge in the market for similar-sized cases.
2. Thicker Tube Wall: Specifically using an aluminum tube with a thickness of 1.1 mm, which is thicker than the conventional 0.8 mm luggage pull handle, providing greater support and impact resistance.

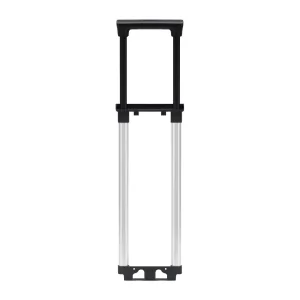

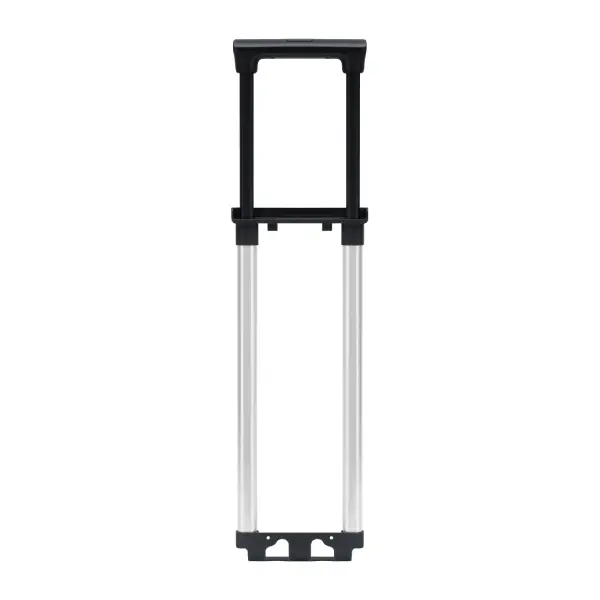

3. The JX8228 features 2-3 retractable sections, making pulling the suitcase smoother and providing a better user experience. Users can easily adjust the length of the handle to suit different usage scenarios.
4. Suitable for PP Hard Shell Suitcases
With its ultra-thin design, thickened tube wall, retractable adjustment function and compatibility with PP hard-shell suitcases, JX8228 has become a highly competitive ultra-thin wall-mounted luggage pull handle launched by the Boluojingxiang brand in 2025.
Material: PP/ABS/AL
Number of Sections: 2/3
Applicable Box: PC
