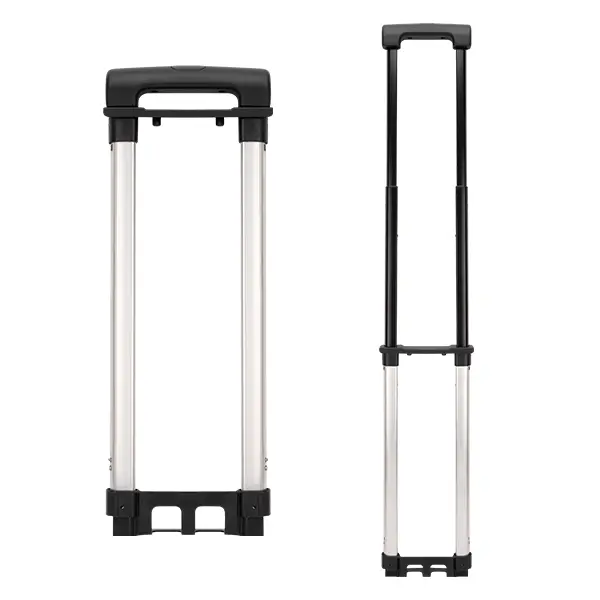

JX8188 Luggage Pull Rod: Precision Engineered for Performance

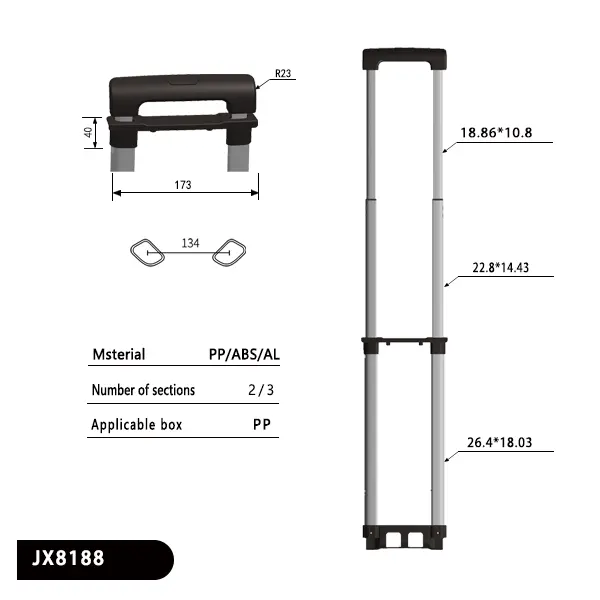

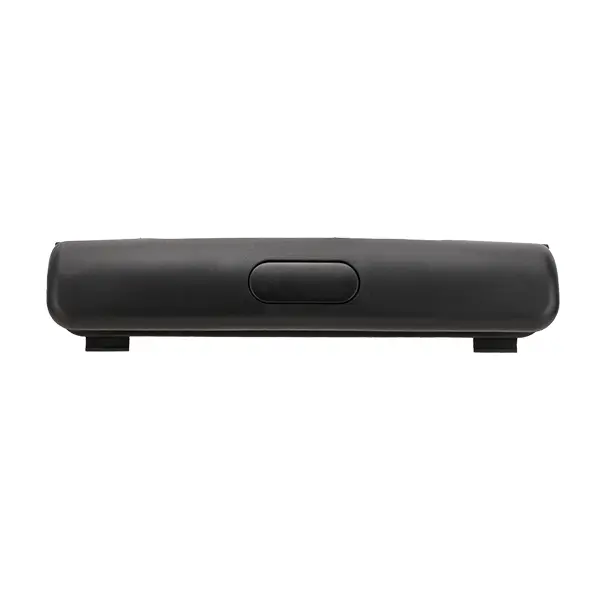

Ergonomic Grip (173mm Center Distance)
Comfortable palm width adaptation: The JX8188 Luggage Pull Rod with a 173 mm center distance perfectly matches the size of adult palms (covering 95% of global users). No pain when pressing.
R23 curvature radius: Naturally fits the palm arc. Even if the user pushes a 30 kg suitcase for 1 km, the hand is still comfortable.
PP anti-slip texture: The diamond-shaped bumps on the surface increase friction and do not slip on rainy days. (Test grip increased by 40%).
Universal Compatibility (18.86×10.8mm Mount)
Interface system: The “一”-shaped upper support plate design is simple and generous, suitable for luggage without rectangular card slots.
Intelligent arc matching: R23 top cover curvature is suitable for most mainstream box design standards, with 0 cutting and modification during installation.

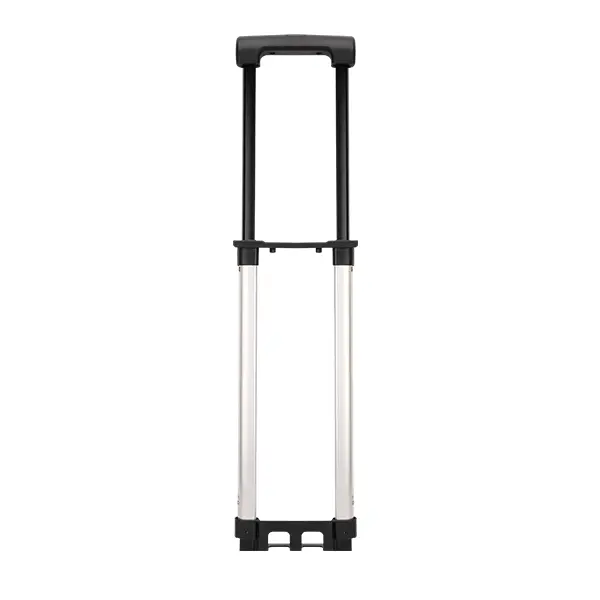

2/3 sections of telescopic free choice/customizable: 2 sections: 20-24 inch cabin luggage; 3 sections: 28-32 inch checked luggage optimization.
JX8188 Luggage Pull Rod Quality Duty Validation
Ultimate load-bearing test: Push and pull 500 times under 150kg dynamic load, aluminum tube deformation < 0.3 mm.
Salt spray corrosion resistance: After 96 hours of salt spray spraying, there are 0 corrosion spots on the surface of the aluminum tube. (Longer service life, worry-free storage in shipping warehouses).
Temperature range adaptability: A -30℃~60℃ temperature difference environment can be stretched without pause.
